Material components

Kompoz implements Material 3 as Compose Material 3 1.4 does, Expressive components included: the same components, the same measurements and the same defaults. This page is a tour of the main ones; the API page lists them all with their status.

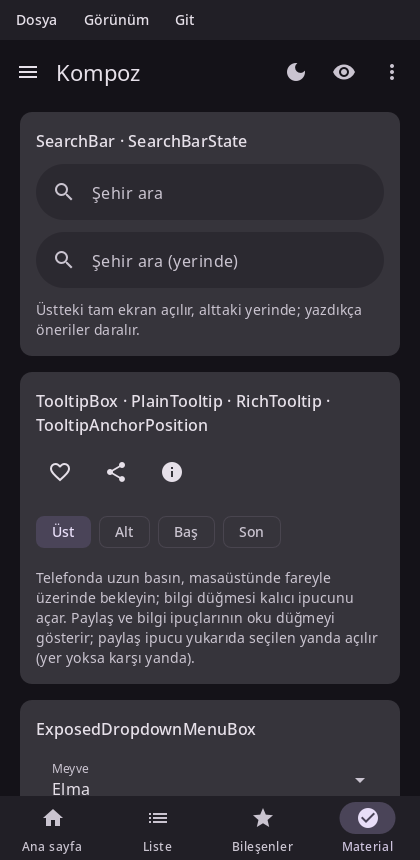

The showcase's Material screen in the dark theme

Material components read their colors, type and motion from MaterialTheme, so wrap your app in one. See Theming.

Scaffold and app bars

Scaffold lays out a screen: a top bar, a bottom bar, a floating action button and a snackbar host around the content. The content gets the padding that keeps it clear of the bars and the system's insets.

void Inbox() {
auto snackbars = rememberSnackbarHostState();
Scaffold(Modifier(),
{.topBar = [] { TopAppBar({.title = [] { Text("Inbox"); },
.navigationIcon = [] { IconButton([] {}, [] { Icon(Icons::Filled::Menu, "Menu"); }); },
.actions = [] { IconButton([] {}, [] { Icon(Icons::Filled::Search, "Search"); }); }}); },
.floatingActionButton = [snackbars] {
FloatingActionButton([snackbars] { snackbars.showSnackbar("Draft saved"); }, [] { Icon(Icons::Filled::Edit, "Compose"); });
},
.snackbarHost = [snackbars] { SnackbarHost(snackbars); }},
[](PaddingValues padding) {
LazyColumn(Modifier().fillMaxSize(), {.contentPadding = padding}, [](LazyListScope& l) {
l.items(30, [](int i) { ListItem({.headline = [i] { Text("Message " + std::to_string(i)); }}); });
});
});
}

Top app bars come in the sizes Material defines: TopAppBar, CenterAlignedTopAppBar, MediumTopAppBar and LargeTopAppBar. With a scroll behavior (TopAppBarDefaults::enterAlwaysScrollBehavior(), exitUntilCollapsedScrollBehavior(), pinnedScrollBehavior()) and the behavior's nestedScrollConnection on the Scaffold, they collapse and change color as the content scrolls (see Lists and grids). BottomAppBar and BottomSheetScaffold exist too.

Component	Use
`NavigationBar` + `NavigationBarItem`	Three to five destinations at the bottom of a phone screen.
`ShortNavigationBar`	M3 Expressive's shorter bar.
`NavigationRail`, `WideNavigationRail`	Destinations at the side of a wider window.
`ModalNavigationDrawer`, `DismissibleNavigationDrawer`, `PermanentNavigationDrawer`	A drawer of destinations.
`NavigationSuiteScaffold`	Picks a bar, a rail or a drawer by the window's size.
`PrimaryTabRow`, `SecondaryTabRow`, `PrimaryScrollableTabRow` + `Tab`	Tabs.

NavigationSuiteScaffold is usually the one you want: it shows a bar on a phone and a rail on a tablet or desktop window, as Compose's adaptive navigation suite does.

void App() {
auto tab = rememberSaveable([] { return mutableStateOf(0); });
NavigationSuiteScaffold([&](NavigationSuiteScope& nav) {
nav.item(tab.get() == 0, [tab] { tab.set(0); }, Icons::Filled::Home, "Home");
nav.item(tab.get() == 1, [tab] { tab.set(1); }, Icons::Filled::Search, "Search");
nav.item(tab.get() == 2, [tab] { tab.set(2); }, Icons::Filled::Settings, "Settings");
}, Modifier(), {}, [&] {
Text("Tab " + std::to_string(tab.get()));
});
}

For moving between screens with a back stack, see Navigation.

Buttons

Component	Emphasis
`Button`	Filled: the main action.
`FilledTonalButton`	Tonal: an important action that isn't the main one.
`ElevatedButton`, `OutlinedButton`	Medium emphasis.
`TextButton`	Low emphasis, in dialogs and cards.
`IconButton`, `FilledIconButton`, `OutlinedIconButton`, `IconToggleButton`…	An icon on its own.
`FloatingActionButton`, `SmallFloatingActionButton`, `LargeFloatingActionButton`, `ExtendedFloatingActionButton`	The screen's primary action.
`SingleChoiceSegmentedButtonRow` + `SegmentedButton`	A choice among a few options.
`ButtonGroup`, `SplitButtonLayout`, `ToggleButton`	M3 Expressive's groups, split buttons and toggles.

Row(Modifier(), {.horizontalArrangement = Arrangement::spacedBy(8)}, [&] {
Button([] {}, [] { Text("Save"); });
OutlinedButton([] {}, [] { Text("Cancel"); });
IconButton([] {}, [] { Icon(Icons::Filled::Favorite, "Like"); });
});

Cards and lists

Card, ElevatedCard and OutlinedCard group related content; each also comes in a clickable form that takes onClick first. ListItem is a one-, two- or three-line row with optional leading and trailing content:

OutlinedCard(Modifier().fillMaxWidth(), [&] {
ListItem({.headline = [] { Text("Wi-Fi"); },
.supporting = [] { Text("Connected"); },
.leading = [] { Icon(Icons::Filled::Settings, ""); },
.trailing = [] { Switch(true, [](bool) {}); }});
});

Selection controls

Checkbox, TriStateCheckbox, RadioButton, Switch, Slider and RangeSlider. They are stateless: they show the value you pass and report changes through a callback.

void Volume() {
auto volume = remember([] { return mutableStateOf(0.5f); });
auto muted = remember([] { return mutableStateOf(false); });
Column([&] {
Slider(volume.get(), [volume](float v) { volume.set(v); });
Row(Modifier().toggleable(muted.get(), [muted](bool v) { muted.set(v); }, SemanticsRole::Checkbox),
{.verticalAlignment = Alignment::CenterVertically}, [&] {
Checkbox(muted.get(), {});   // the whole row toggles it
Text("Mute");
});
});
}

Pass an empty callback to a control inside a row that handles the click itself, as above, so that the row is one touch target and one item for accessibility.

Chips

AssistChip, FilterChip, InputChip and SuggestionChip:

FilterChip(selected.get(), [selected] { selected.set(!selected.get()); }, [] { Text("Unread"); });

Text fields

TextField and OutlinedTextField, with labels, placeholders, icons, prefixes, suffixes, supporting text and errors; SearchBar and DockedSearchBar for search. See Text.

Dialogs, sheets and menus

These show above the rest of the UI. Each is composed where you call it, so it keeps its state and composition locals, and Kompoz places it on top. Show one by calling it while a state says so:

void DeleteButton(std::function<void()> onDelete) {
auto open = remember([] { return mutableStateOf(false); });
TextButton([open] { open.set(true); }, [] { Text("Delete"); });
if (open.get()) {
AlertDialog([open] { open.set(false); },
{.confirmButton = [open, onDelete] { TextButton([open, onDelete] { open.set(false); onDelete(); }, [] { Text("Delete"); }); },
.dismissButton = [open] { TextButton([open] { open.set(false); }, [] { Text("Cancel"); }); },
.title = [] { Text("Delete this message?"); },
.text = [] { Text("It will be gone for good."); }});
}
}

Component	Use
`AlertDialog`, `BasicAlertDialog`, `Dialog`	Asks for a decision.
`ModalBottomSheet`	Content that slides up from the bottom, dismissed by dragging it down.
`DropdownMenu` + `DropdownMenuItem`	A menu anchored to what opened it.
`ExposedDropdownMenuBox`	A text field with a menu of choices.
`DatePicker`, `DateRangePicker`, `TimePicker`, `TimeInput`	Dates and times, alone or in `DatePickerDialog` / `TimePickerDialog`.
`TooltipBox` + `PlainTooltip` / `RichTooltip`	A hint on long press or hover.

Snackbars

A SnackbarHost shows the messages of a SnackbarHostState. Show one from a callback with showSnackbar, or wait for how it went in a coroutine:

auto snackbars = rememberSnackbarHostState();
auto scope = rememberCoroutineScope();
Button([scope, snackbars, undo] {
scope.launch([snackbars, undo]() -> Task {
if (co_await snackbars.showSnackbarAsync("Message deleted", "Undo") == SnackbarResult::ActionPerformed) undo();
});
}, [] { Text("Delete"); });
SnackbarHost(snackbars);

Progress

CircularProgressIndicator and LinearProgressIndicator, with a progress value or without one (indeterminate); M3 Expressive's LoadingIndicator, ContainedLoadingIndicator and the wavy indicators. Indeterminate indicators animate in the draw phase, so they don't recompose anything.

CircularProgressIndicator();               // indeterminate
LinearProgressIndicator(progress);          // 40 %

Other components

Badges (BadgedBox, Badge), dividers (HorizontalDivider, VerticalDivider), carousels (see Lists and grids), pull to refresh, swipe to dismiss (SwipeToDismissBox), floating toolbars, and more. The API page has the complete list.
